Flaming Coals Temp Master Pro Fan

Model: TEMPMP-FAN

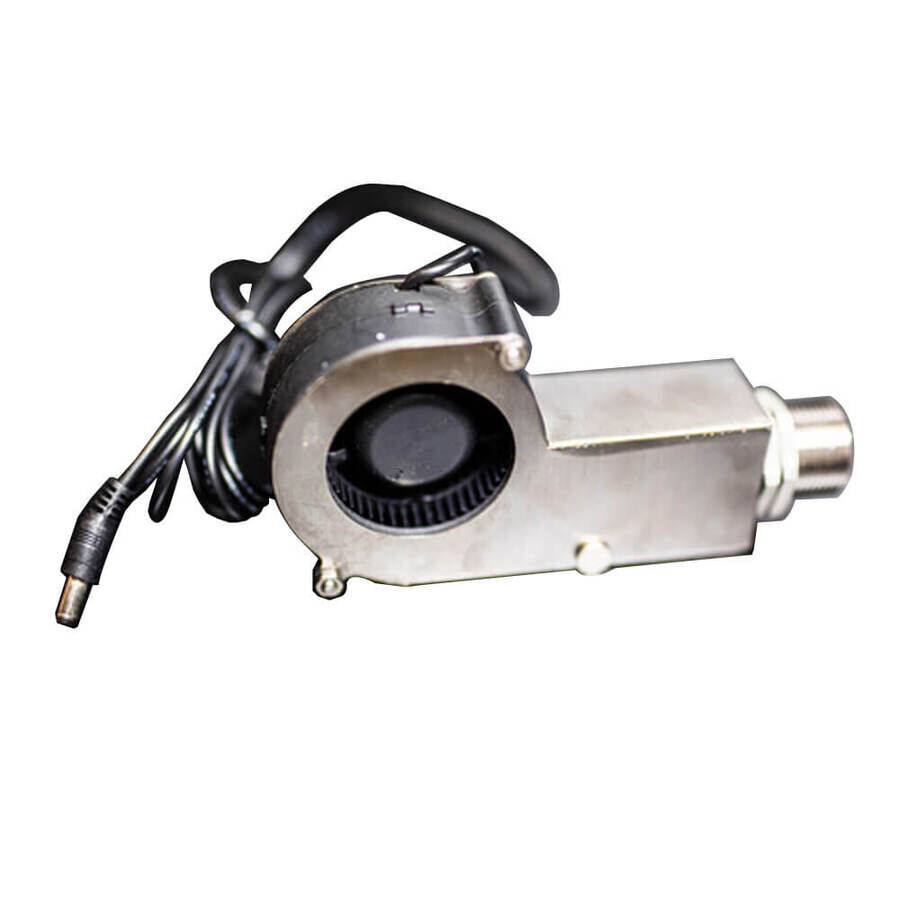

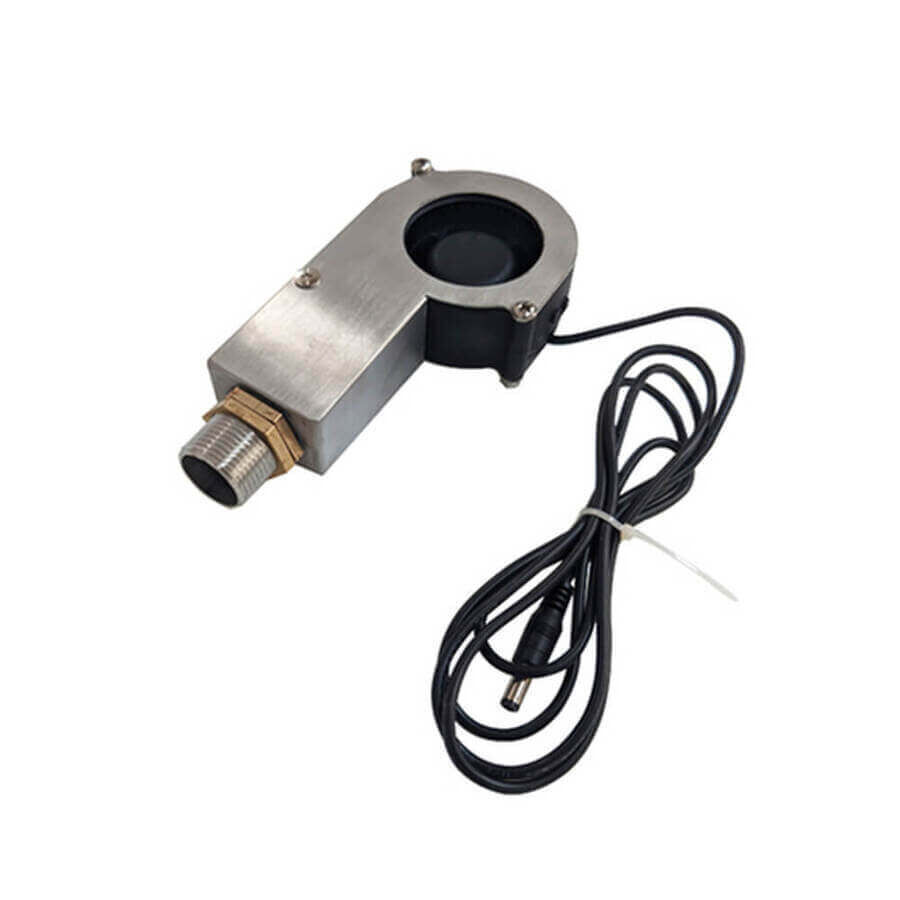

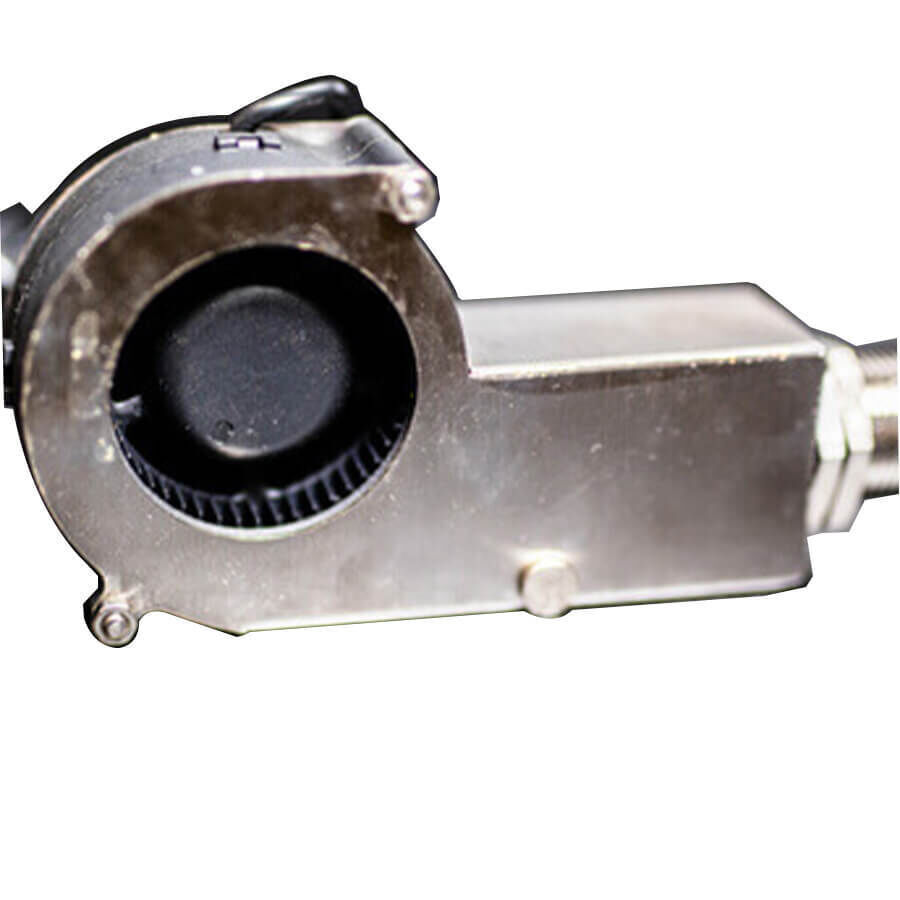

This is a replacement fan for the Tempmaster Pro | Automatic Smoker Temperature Control. It comes with a 190cm cord and has a 2.5/5.5 barrel plug at the end meaning it can be used with any other type of 12V BBQ temperature controller that is compatible with this plug. The fan is a 11.30CFM 12v dc fan that neatly sits into a custom made stainless steel case with a one way built-in shut off plate. When the fan is on the plate opens letting air flow into the BBQ and when the fan stops, the plate closes stopping most of the airflow into the fire and reduces heat flowing back into the fan.

This Fan is also compatible with the Fireboard 2 Drive Kit as stated on the Fireboard website.

Fan connection adaptor kits are also available to assist in connecting the fan to your smoker.

• Tempmaster Pro | 2"- 1" & 1"-3/4" BSP Stainless Steel Reducing adaptor set
• Tempmaster Pro Universal Smoker Fan Adapter
• Tempmaster Right Angle Adapter | 3/4"M BSP- 3/4"F BSP Stainless Steel

Specifications:

• 3/4 inch BSP screw thread
• 2 securing nuts to assist in connecting to your smoker.
• 190cm long Power Cord
• Input voltage: 7 to 13.8VoltsDC
• Input Current: 0.22A (0.36Amp Max)
• Input Power: 2.64W (4.32W Max)
• Fan Speed: 2900RPM
• Max Air Flow: 11.30CFM
• Noise: 38dB-A
• 5.5/2.5mm DC Jack plug
